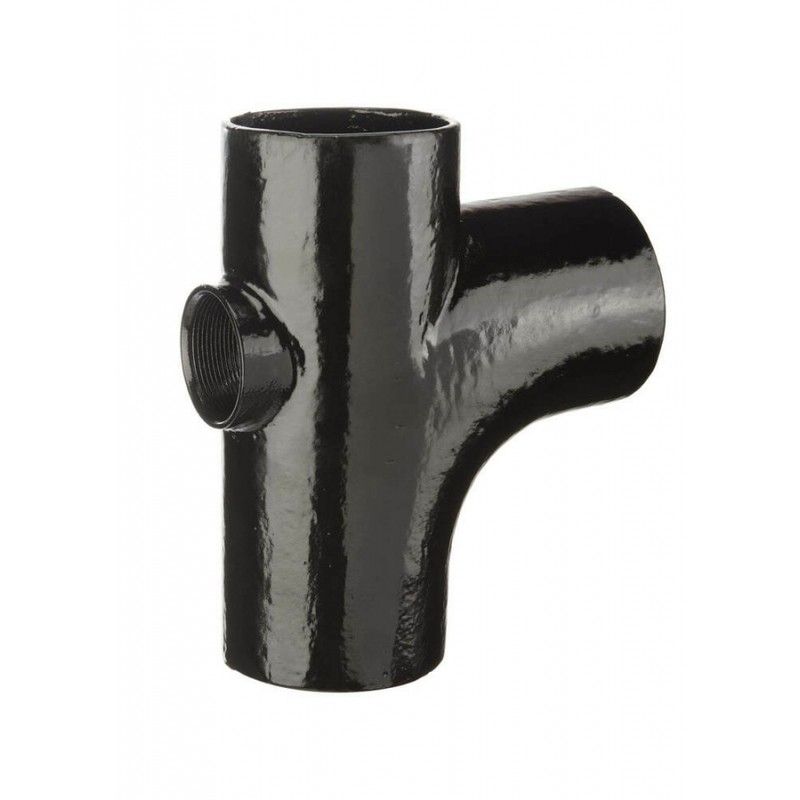

Push Fit Cast Iron Soil Branch with Rear Boss - 92.5 Degree x 100mm
| Code | TX4039B |
|---|---|
| EAN Code | 0691208238793 |
| Angle | 92.5 Degree |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Material | Cast Iron |
| Style | With Rear Boss |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| Orientation | Rear |
| Size | 100mm |
This 92.5 degree branch incorporates a waste boss at the rear that allows a waste pipe to be connected into the soil system. The boss is already open and tapped with a 2” BSP thread.
The 92.5 degree angle of the branch gives a 2.5 degree fall which promotes a self-cleansing flow within the soil pipe.
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this branch to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
