Rainsmart Ellipse Soakaway Set Flat-Packed with Silt Trap & Lid 1 Cubic Metre

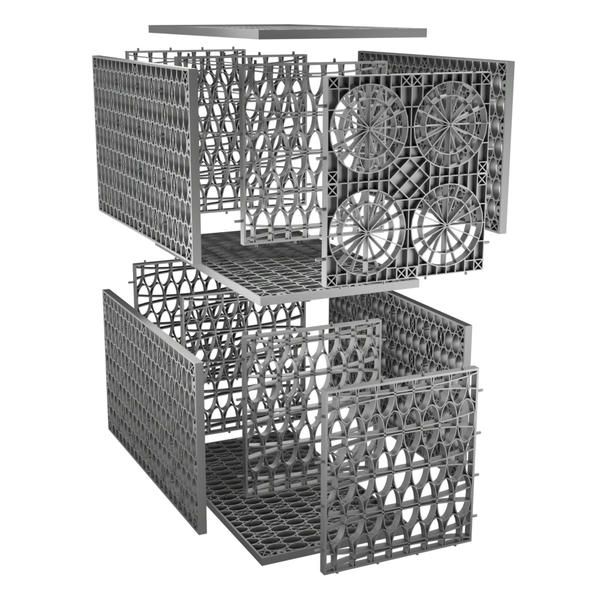

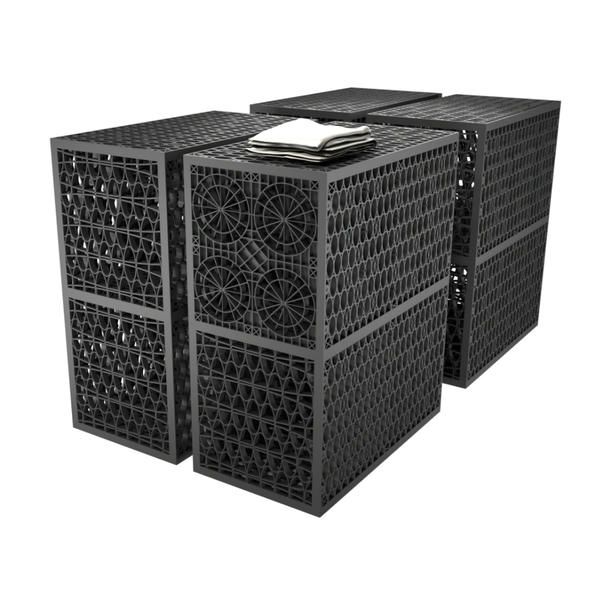

This soakaway set is comprised of four Rainsmart Ellipse Soakaway Crates (24.2 tonne vertical load capacity) and sufficient non-woven geotextile membrane to wrap all outward faces of the soakaway including the base. The set also includes cable ties for holding the crates together until the side fill has been introduced, and a rubber mallet for easy assembly.

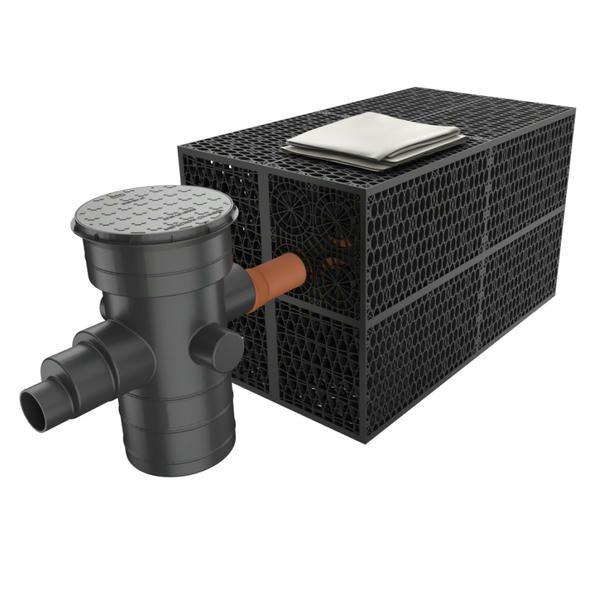

Additionally, the set contains a Sentinel Silt Trap C/W Catchpit and Filter to filter out sediments and allow a clean flow of water into the soakaway, as well as a 300mm Square Manhole Cover and Frame.

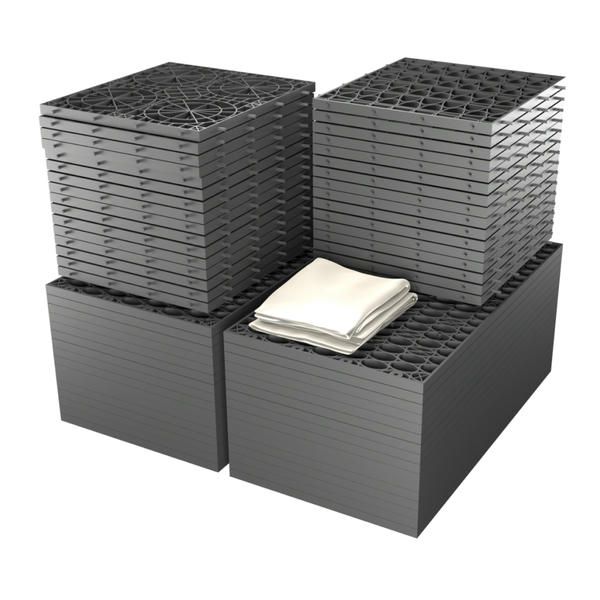

Assembly of this set really is a quick and easy process taking around 10-12 minutes in total and the self-assembly set represents excellent value for money - it is around £30 plus VAT cheaper than the fully assembled option.
Full instructions are included and you can view a quick video on assembling flat-packed soakaways below.

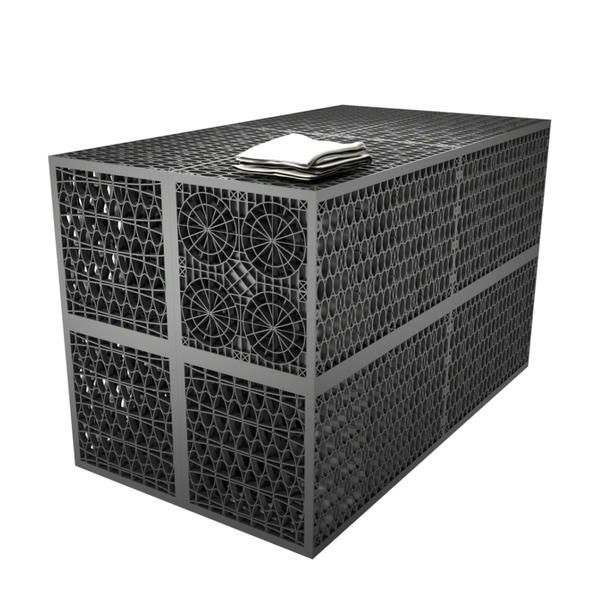

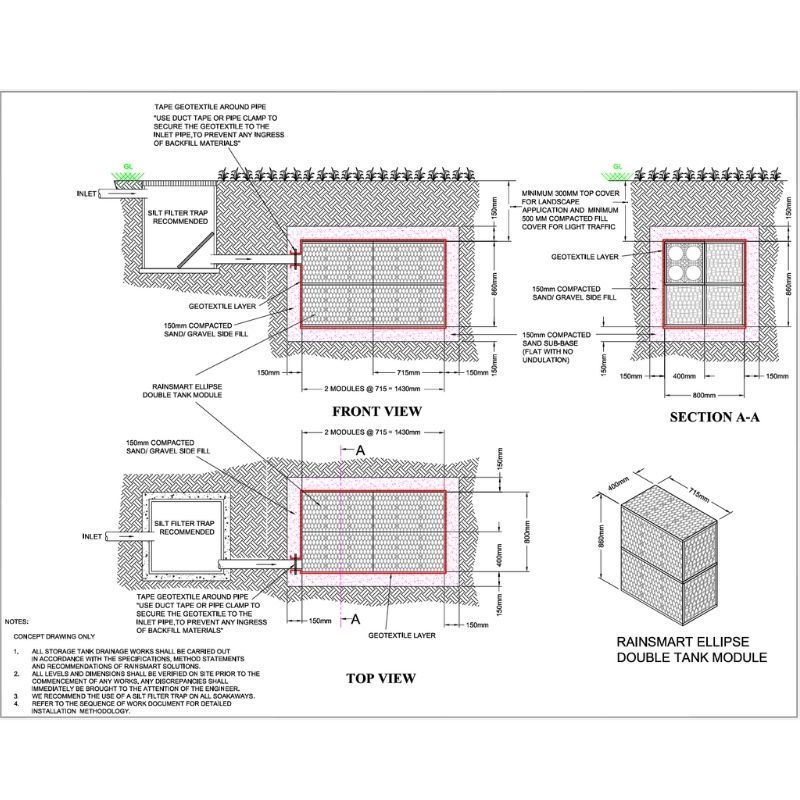

The dimensions of the complete soakaway are 1430mm (L) x 800mm (W) x 860mm (D)
Rainsmart soakaway crates have a void ratio of 95% - this is the amount of free space within the crate structure that can be used for rainwater storage. The capacity of this 1 cubic metre soakaway is an impressive 935 Litres. Under normal conditions this would be sufficient to hold water from a roof area of approximately 50 square metres.
The vertical crush load capacity of 24.2 tonnes per square metre ensures that the Rainsmart Ellipse crates are safe to be used beneath gardens and pedestrian areas. The lateral crush load of 18 tonnes per square metre is the best of any type of soakaway crate currently available in the UK.
Clips are not required to hold the crates together. No clips on any crate system are structural it is always the side fill on any soakaway installation which adds the stability needed to hold the structure in place. Cable Ties are included with our 1m³ Soakaway Sets and these are used purely to hold the crates in place until the sand or gravel side fill has been added.
The Sentinel Silt Trap system ensures longevity of the soakway system - removing 99% of the silt and sand that would potentially end up in the system from surface areas. Emptying the filter on a regular basis (this is only a five minute job) will maintain the efficiency of the soakaway and greatly increase its lifespan.
All outward facing crate surfaces of any soakaway should be wrapped in non-woven geotextile membrane, which allows the free passage of water but prevents any soil or sand particles from entering the soakaway, maintaining its long term efficiency.
