Rainsmart Soakaway Set Shallow for Heavier Soils Flat-Packed 1 Cubic Metre

This soakaway set is ideal for use in heavier soils where there is a higher than average table or where the site condition suit a shallower soakaway installation.

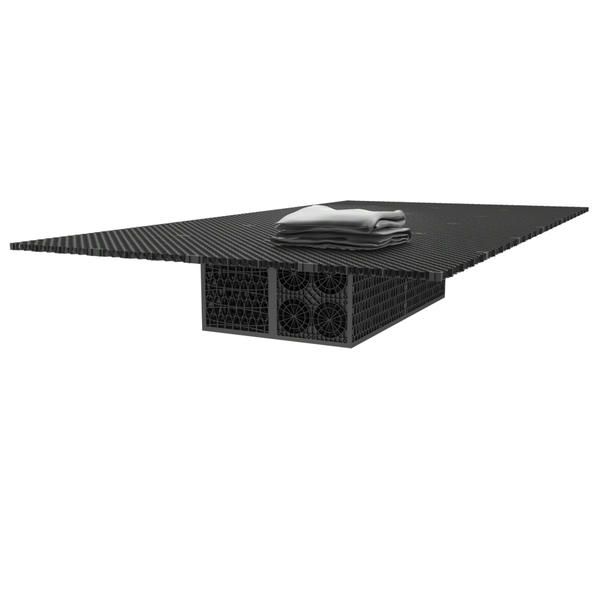

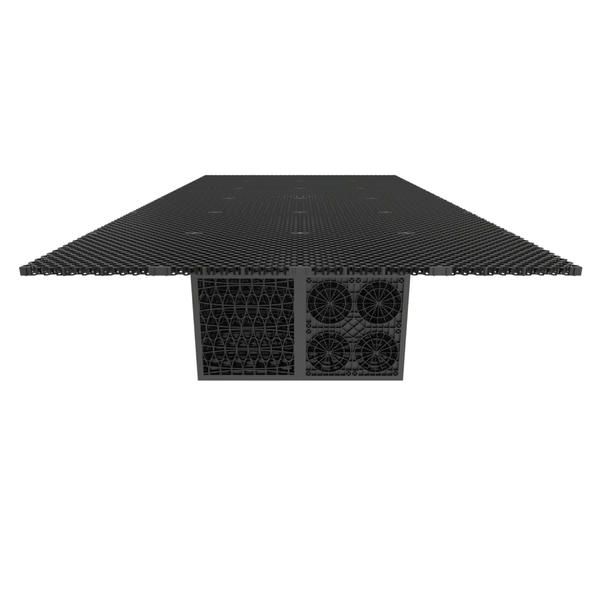

The soakaway is comprised of eight single Rainsmart Ellipse Soakaway Crates (24.2 tonne vertical load capacity) laid out in a table style with a covering of 3.6m x 2m x 30mm Nero drainage cells sitting above the crates. The kit includes sufficient non-woven geotextile membrane to wrap all outward faces of the soakaway including the base and the drainage cells above. Also included are cable ties for holding the crates together until the side fill has been introduced. As this kit is only  available in a flat pack option we also include a rubber mallet in the kit for assembling the crates.

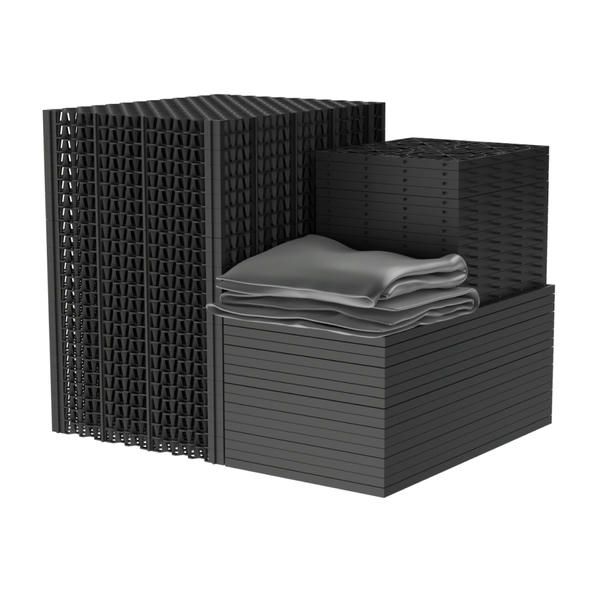

You can view a quick video on assembling flat packed soakaways here. Its a quick and simple process that should take no longer than 10-12 minutes for the whole cubic metre set.

Size, load and capacity

The dimensions of the complete soakaway are;

• Main Soakaway Body - 1600mm (L) x 14300mm (W) x 440mm (D)
• Drainage Cells Above - 3600mm (L) x 2000mm (W) x 30mm (D)

All Rainsmart soakaway crates have a void ratio of 95% - this is the amount of free space within the crate structure that can be used for rainwater storage. The capacity of this soakaway is 1022 Litres. Under normal soil conditions this would be sufficient to hold water from a roof area of approximately 50 square metres.

The vertical crush load capacity of 24.2 tonnes per square metre ensures that the Rainsmart Ellipse crates are safe to be used beneath gardens and pedestrian areas. The lateral crush load of 18 tonnes per square metre is the best of any type of soakaway crate currently available in the UK.

The science bit

Heavier soils hold rainwater within the soil particles for longer, slowing down the infiltration rate. This means that in heavy rainfall conditions the soakaway void will fill up quicker than normal. By introducing a layer of 30mm cells laid our in a table style above the soakaway crates, the soil contact area for infiltration is greatly increased  - the 30mm cells have a surface contact area that is over three times the size of the soakaway body.

Note though that soils that are comprised completely of clay are not generally suitable for soakaways, due to the infiltration rate being so slow. If in doubt we recommend that you carry out a soil percolation test.

Joining crates together

Clips are not required to hold the crates together. No clips on any crate system are structural it is always the side fill on any soakaway installation which adds the stability needed to hold the structure in place.  Cable Ties are included with our 1m³ Soakaway Sets and these are used purely to hold the crates in place until the sand or gravel side fill has been added.

All outward facing crate surfaces of any soakaway or drainage cell should be wrapped in non-woven geotextile membrane (supplied), which allows the free passage of water but prevents any soil or sand particles from entering the soakaway, maintaining its long term efficiency.

Connecting Pipes to Soakaways
